R2006gs Receiver Manual

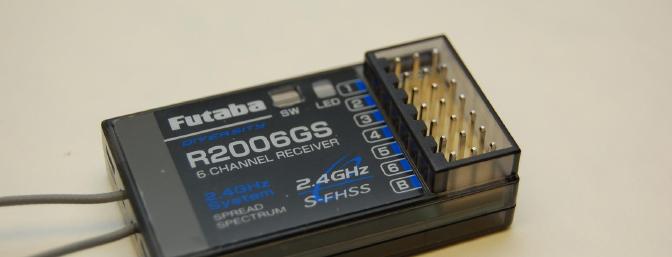

Important: The 2.4GHz band offers different characteristics than that of the conventional 50MHz and 72MHz. As such, we strongly encourage you to read this manual carefully prior to utilizing the TM- FH and R2006GS S-FHSS system. 1M23N25803 Contents and Technical Specifications Your 2.4GHz system includes the following components: Specifications: TM-FH RF Module- • Communication system: one-way communication • Antenna: 1/2 wavelength di-pole • Current consumption: 150mA maximum • Setting switch for Fail Safe (F/S) setting and range check R2006GS Receiver- • Dual antenna diversity • Power requirement: 4.8V or 7.4V battery or regulated out- put from ESC, etc. (*1) • F/S and Battery F/S function for throttle channel (channel three) • Size: 1.70 x 0.98 x 0.35 in.

(43.1 x 25.0 x 8.8 mm) • Weight: 0.30 oz. (8.5g) (*1) Be sure that when using ESC's regulated output the capacity of the ESC must meet your usage condition. Never use dry cell batteries for the R2006GS receiver as this may cause difficulties with the receiver's operation.

Only US$61.97, buy best Futaba R2006GS 2.4G 6CH S-FHSS Receiver Compatible T6K 18MZ 14SG T6J T8J sale online store at wholesale price.US/EU. Futaba R2006GS 6 channel Receiver compatible with the Futaba 6J, 8J, and 14SG.

• Select 'Installation' and press OK. • Select 'Settings' and press OK. If you can't select Installation, you might be recording or playing something on your Humax. Manual.

Fifa world cup 2010 wavin flag video song free download. TM-FH RF Module S-FHSS Air System TM-FH RF Module and R2006GS Receiver Thank you for purchasing the TM-FH 2.4GHz transmitter module and R2006GS receiver. This system is designed for use only with the Futaba transmitters indicated elsewhere in this manual.

In order to use the TM- FH transmitter module, you will need to carefully remove the existing transmitter module and replace it with the TM-FH transmitter module. The receiver R2006GS, as the model number indicates, is capable of controlling models up to six channels. Please note: The installation of the R2006GS differs slightly from that of a typical receiver. Please pay special attention to the information contained within this manual in order to have a pleasant flying experience. Note: Futaba S-FHSS system and FASST system are not compatible each other. Features: • 2.4GHz Spread Spectrum radio communication system. • Exclusive ID code to avoid interference from other S-FHSS systems.

• Fail Safe (F/S) function (for throttle channel)-F/S, Battery F/S • Dual antenna diversity (R2006GS) Applicable systems: T9C, T9Zwc2, T10C R2006GS Receiver Mini screwdriver Instruction Manual Repair Service (in U.S.A.) If any difficulties are encountered while setting up or operating your TM-FH transmitter module and R2006GS receiver, please consult this instruction manual first. For further assistance you may also refer to your hobby dealer, or contact the Futaba Service Center at the web site, fax or telephone number below: www.futaba-rc.com, www.2.4gigahertz.com Fax (217) 398-7721, Tel (217) 398-8970 (option 2) If you are unable to resolve the issue, pack the system in its original container with a note enclosed and a thorough, accurate description of the difficulty. Include the following in your note: • Symptoms (Including when the problem occurred) • System (transmitter, Receiver, Servos and model numbers) • Model (Model name) • Model numbers and quantity • Your Name, Address and Telephone number Send the respective items to the authorized Futaba Service Center address below: Futaba Service Center 3002 N Apollo Drive Suite 1 Champaign, IL 61822 Special Markings; Pay special attention to the safety at the parts of this manual that are indicated by the following marks.
